16 Relay, 16 Digital and 4 Analog Input Expansion Module

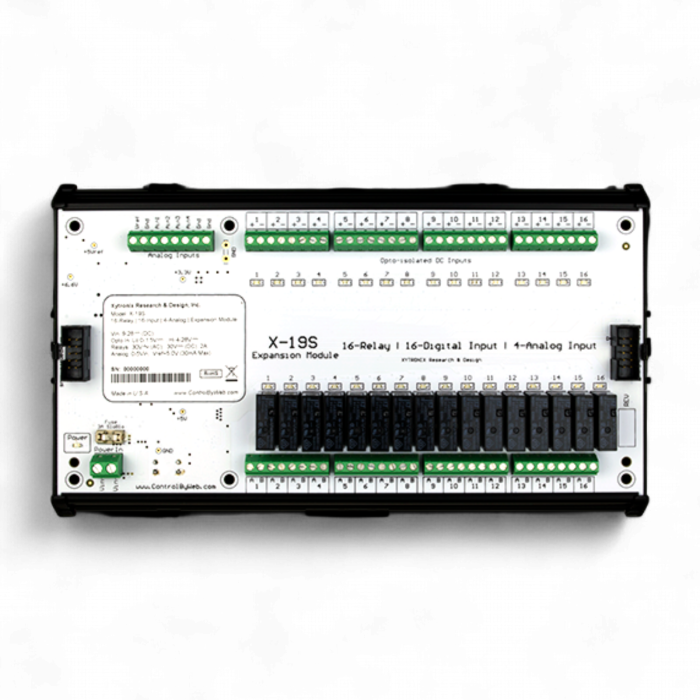

The X-19s™ expansion module is used with the X-400 or X-600M controller. The X-19s has 16 relays, 16 optically-isolated digital inputs, and 4 analog inputs. Screw terminal strips provide connections to the relays and inputs.

Since the X-19s functions as a slave device to the X-400 or X-600M, the advanced features of the X-400 or X-600M can be utilized with this module. For example scheduling, remote relay control, logging, counting, email alerts based upon single input state change or multiple input state changes, analog slope and offset calculations, and many other features are available. Attach multiple X-19s modules or a combination of expansion modules to the X-400 or X-600M for an I/O combination that is tailored to your specific needs.

The X-19s comes with a 5-inch jumper type ribbon cable for making connections to the X-400 or X-600M.

More information is available on the website of ControlByWeb.
