Bias-tee Low Noise Amplifier (RX)

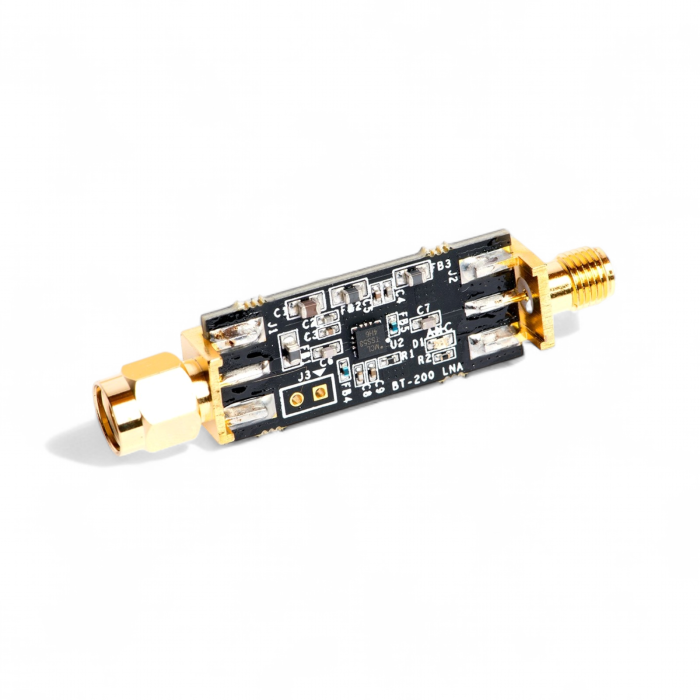

The BT-200 is a wideband bias-tee RX Low Noise Amplifier that draws its current from the bladeRF 2.0 micro’s SMA connectors. The BT-200 is a compact LNA solution useful for substantially lowering the noise figure and substantially increasing dynamic range of most applications. bladeRF-cli and the libbladeRF API can be used to enable and disable the bias-tee when it is needed.

• Features Mini-Circuits TSS-53LNB+ MMIC Low Noise Amplifier – 50MHz to 5GHz MMIC
• Power consumption: 300mW
• Green LED power indicator
• Gain: +21dB @ 200MHz, +19dB @ 2.4GHz, +15dB @ 5GHz
• Ultra low Noise Figure: <1.8dB
• LNA enters bypass mode when port is unpowered (4dB IL)

More information is available on the website of Nuand.
