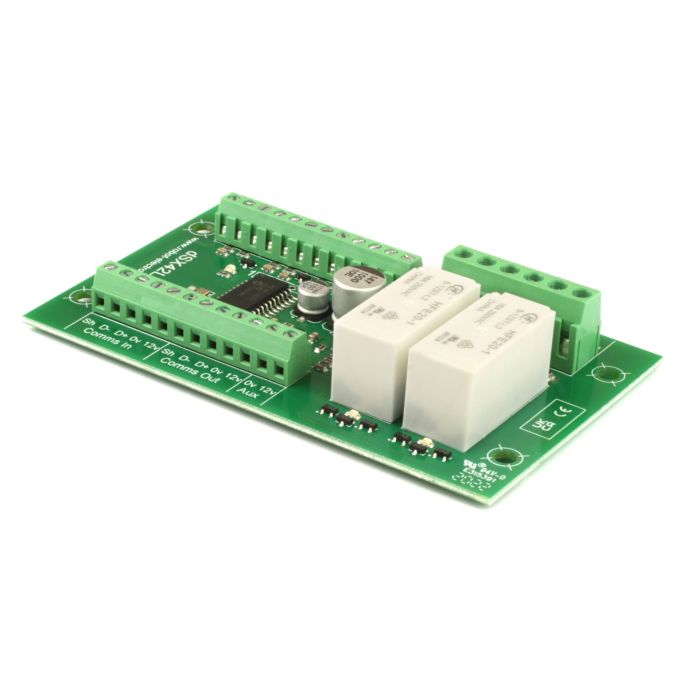

Expansion Module with 2 Relays and 4 Inputs
Expansion Module with 2 Relays and 4 Inputs
Art.Nr.: dSX42L
1-2 Arbeitstage
sku dSX42L
Produktbeschreibung
Expansion board providing low voltage DC inputs and two extra relays for the dScript modules, powered and controlled through the dS modules RS485 port.
- Serial ports - 1 x RS485 port.
- Relays - 2 with up to 16Amp @24vdc or 250vac, screw Terminals for N/O N/C and C contacts
- Inputs - 4 which may be digital or analogue 0-5v 10-bit.
- Power - 12v from connected dScript module (requires twin pair cable) or directly on screw terminals if required.
Compatible dScript modules: dS2242, dS378, dS3484, dS2824, dS2832, dS2408.
Configuration: Easy setup via dSx configuration page on the dScript module. After configuration Relays and Inputs operate as if they were local. Up to 16 dSx modules may be added.
More information is available on the website of Devantech.
