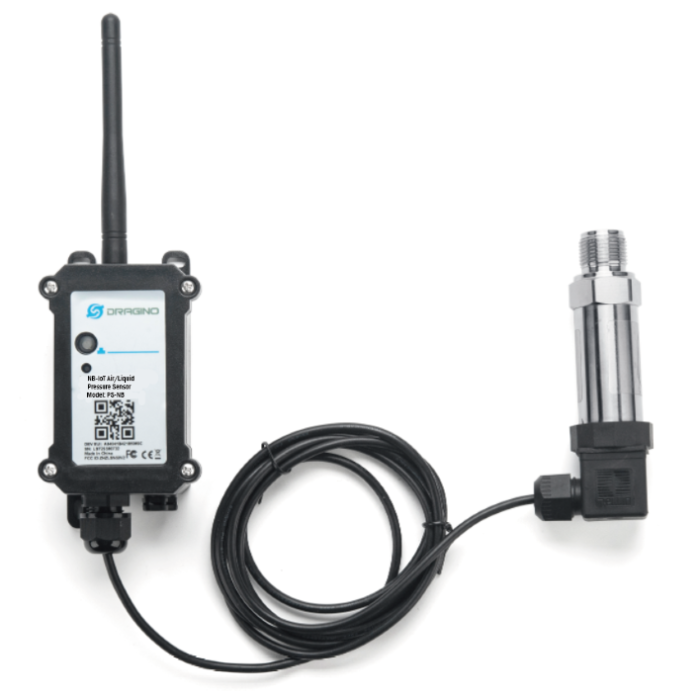

NB-IoT Air/Water Pressure Sensor – Thread Type G1/2 (0 - 1MPa)

The Dragino PS-NB series sensors are NB-IoT Pressure Sensor for Internet of Things solution. PS-NB-T is the thread type which can measure air or liquid pressure and upload the sensor data wireless to LoRaWAN IoT server.

This version has G1/2 thread and 0 - 1 MPa pressure range. Other versions are available upon request.

You can use various IoT Servers and different uplink methods including MQTT, MQTTs, UDP and TCP.

The sensor node uses Quectel BC660K-GL Multi-band LTE Cat NB2 module which can be used in most European countries. It has a card slot for an NB-IoT SIM card. Ask your mobile operator about availability of SIM cards, coverage, frequencies used and login procedures. See for example Deutsche Telekom IoT and 1NCE.

This device supports BLE for easy configuration and wireless OTA to update the firmware.

PS-NB is powered by 8500mAh Li-SOCI2 battery for many years of use. It has an external antenna and an IP66 enclosure.

More information is available on the website of Dragino.
